ESWDA Modernized – Thermal Break Aluminum Flush Sash with Casement Screen Series
$ 0.00Request a Auote
Description
Modernized Aluminum Flush Sash Series
Profile

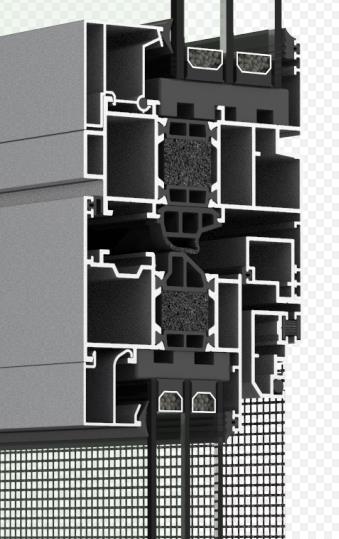

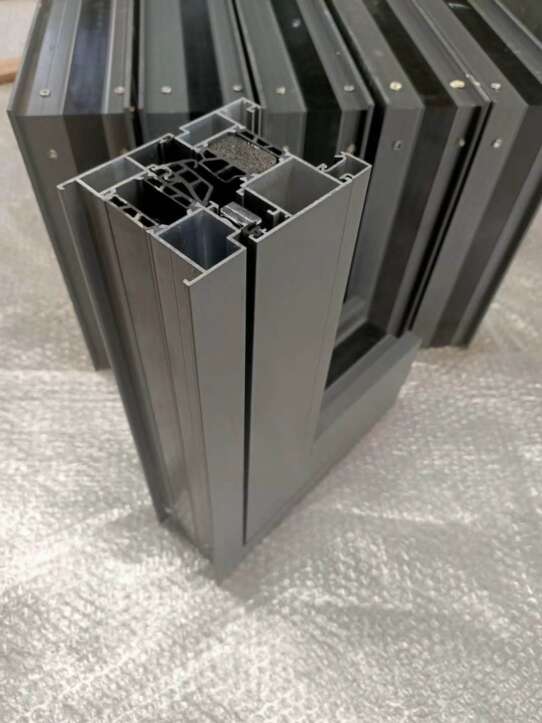

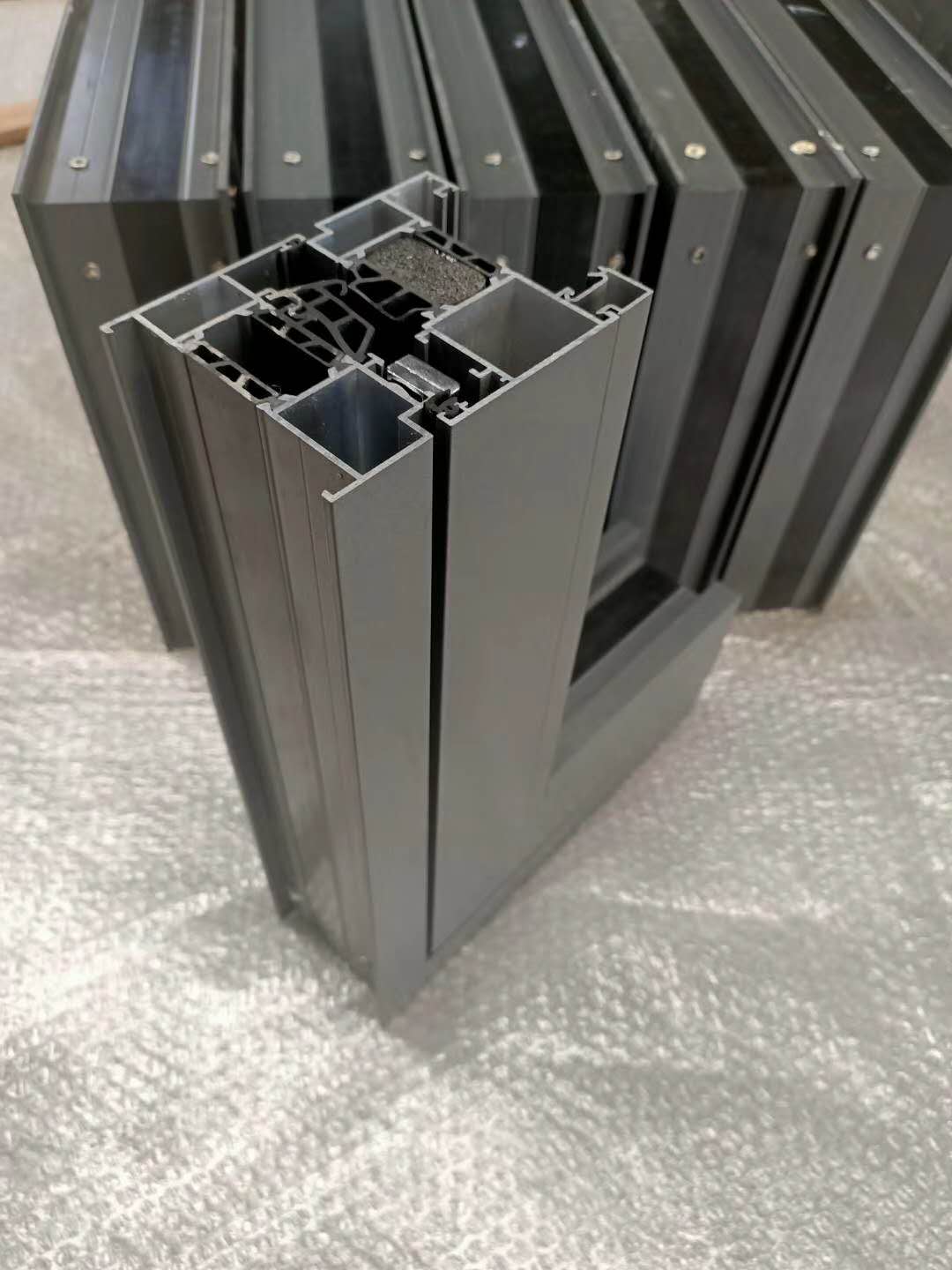

Europe Standard 6063 T5 Thermal Break Aluminum, Multi-cavity Structure
Profile Thickness 1.6mm, Max 2.0mm
Powder Coating, Customized Color Available
Energy Efficient
Advanced PA66+GF Insulate Strip, Thickness 30mm
Advanced EPMD + Foamed Composite Strip—30 years warranty
6mm+20Ar+6mm or 5mm+12Ar+5mm+12Ar+5mm Fully Tempered Insulated Glass
Low-e Coating
Supper Warm Edge Spacer
Hardware
Top German Brand Hardware
Screen
Fix Screen, Casement Screen (Stainless Steel) Optional
Open Type
Casement, Push out Casement, Tilt and Turn, Picture
Performance
U-factor: Double Glazing 0.25 / Triple Glass 0.19 (Btu/ft² • hr • F°)
SHGC：0.23-0.55(Adjustable by Low-e Glass)
35dB-40dB
Visible Transmittance：0.48-0.64
Air Leakage:＜0.2 cf • m/ft²
